Understanding Im1 – Im4 Part 9 Immersion Categories in ISO 12944
Each immersion category relates to different conditions. Im1 is for fresh water such as hydro installations. Im2 deals with brackish water or full marine environments like harbour areas or sluice gates. Im3 covers buried steel, such as steel pipes or piles in soil. Im4 applies to high-risk offshore and related structures that are submerged in saltwater and protected with cathodic protection. Recognising the correct immersion category allows accurate selection of coating systems that meet durability categories under ISO 12944.
Why Im-Categories Matter in Corrosive Environments
Steel that is submerged or buried doesn’t face the same challenges as steel in open air. Immersion categories Im1–Im4 ensure you select a coating system built for harsher environments—whether it’s moderate salinity in river systems or high salinity in offshore environments. While corrosivity categories C1 to CX are widely used for atmospheric exposure, they are not designed for immersed or buried structures.
Mixing up corrosion classes can result in coating failure, adhesion failure or unexpected maintenance. That's why understanding the correct corrosion category and immersion category pairing is essential for any long-term protective coating specification.
Corrosivity Categories and How They Combine with Immersion Categories
The standard series ISO 12944 C1 to CX covers atmospheric corrosivity levels from dry, indoor settings (C1) to harsh offshore environments (CX). These are matched with environmental factors like high humidity, salt spray, splash zones and industrial atmospheres.
Immersion categories (Im1–Im4), defined under ISO 12944-9, run alongside these but focus on submerged or buried steelwork. A correct specification may read “C5 or CX / Im4”, meaning the steel item must be protected both above and below the waterline, in two types of corrosive environment. This is especially relevant for tidal zones and splash zones where structural steel moves in and out of immersion.
How to Select the Right Immersion Category and Coating System
Correct classification under ISO 12944-9 comes down to understanding your exposure conditions. The immersion categories break down like this:
Im1: Fresh water immersion (hydropower plants, internal hydro steelwork)
Im2: Brackish water or marine environments (jetties, locks, harbour steelwork)
Im3: Buried steel in soil (steel piles, underground pipelines)

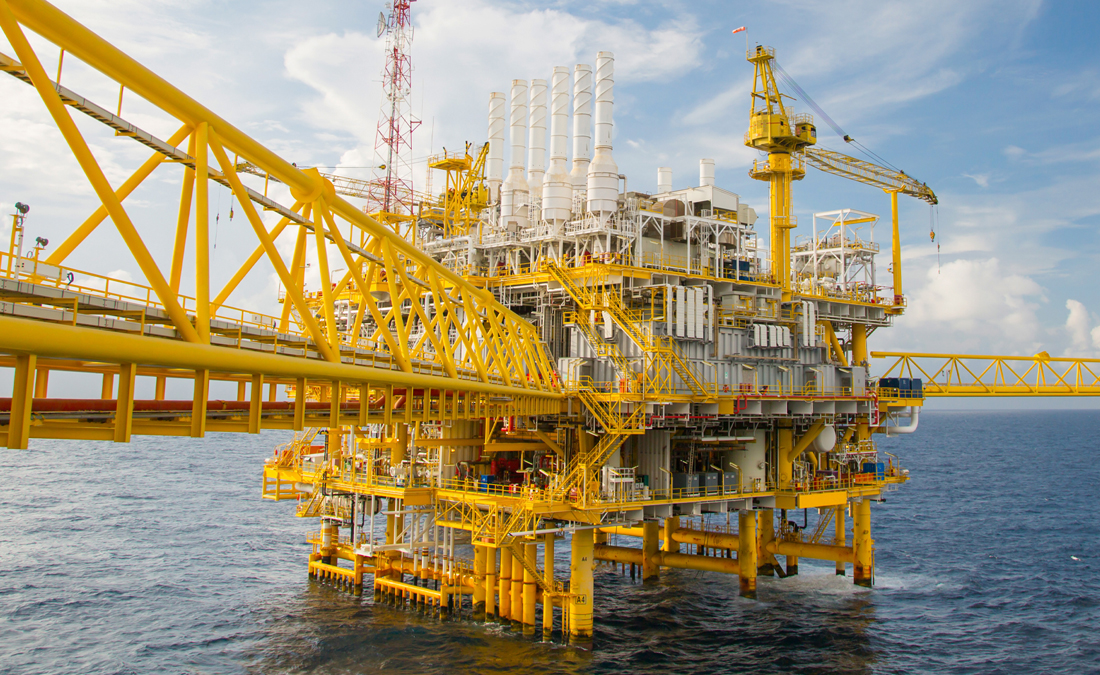

Im4: Marine environments with cathodic protection (offshore platforms, submerged offshore structures)
Each immersion category demands protective paint systems with performance requirements suited to the corrosive environment. Assessing environmental conditions correctly is the only way to prevent corrosion and ensure the right coatings are used.
Laboratory Performance Test Methods and Durability Categories
ISO 12944-9 sets laboratory performance test methods for immersion and offshore environments, introducing strict test regimes to qualify coating systems. This includes cyclic testing, salt spray resistance, cathodic disbondment testing, and immersion performance.
The standard ensures coating systems for Im1–Im4 meet durability ranges such as high or very high. This goes beyond typical atmospheric coatings, as the immersion category service life often exceeds 15–25 years, especially for offshore environments or related structures exposed to extreme humidity and aggressive atmosphere.
Protective Coating Systems for Each Immersion Category
At Promain, we stock protective paint systems specifically tested and certified for ISO 12944-9 immersion categories:

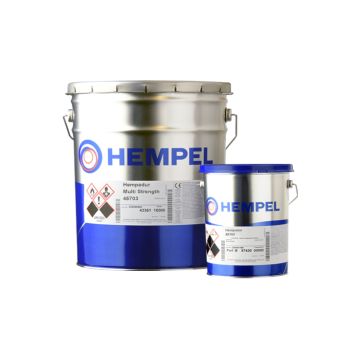

For Im1 (fresh water), use Hempel Hempadur Multi Strength 45703 – a reliable high-build epoxy.

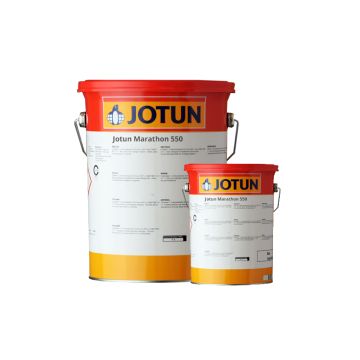

For Im2 (brackish or marine environments), we recommend Jotun Marathon 550 – designed for harsher environments with high salt spray exposure.
For dual exposure (e.g. atmospheric + immersion), Jotamastic 90 Alu B15 offers performance in both C-category and Im-category classifications.

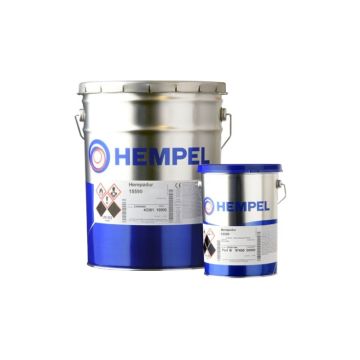

For severe abrasion + immersion conditions, select Hempel Hempadur 15590 – ideal for offshore settings with marine growth and abrasion.
For a universal offshore or industrial coating covering various immersion categories, use Jotun Penguard Pro – tested under ISO 12944-9 for immersion service.
Surface Preparation and Environmental Factors in Immersion Coating Systems
Surface preparation is one of the most critical steps in any coating system used under immersion conditions. According to ISO 8501-1, abrasive blasting is mandatory for removing mill scale, rust, and previous coatings. Without proper surface preparation, even high-performance paint systems will not protect steel structures effectively.
Environmental conditions such as extreme humidity, salt spray and splash zone exposure must also be considered during preparation, especially in offshore and marine environments where failure risks are high.
Film Thickness and Coating Design Based on ISO 12944-9
The dry film thickness (DFT) required for coatings in immersion categories is usually much higher than atmospheric coatings. For instance, Im4 systems may demand 300–700 µm DFT across multiple coats. This is necessary to meet the durability categories under ISO 12944.
Correctly specifying the number of coats, DFT and coating system ensures protective coatings meet or exceed their intended service life.
Laboratory Test Methods and Manufacturer Certification
All coating systems for Im1–Im4 must pass laboratory test methods as outlined in ISO 12944-9. These tests validate resistance to brackish water, high humidity, cathodic protection, salt spray, and more.
When specifying a protective coating, ask for technical data sheets (TDS), lab test reports and third party testing to confirm ISO 12944-9 compliance. Promain provides all required documentation to support your protective coatings specification.
Corrosivity Categories vs Immersion Categories: Why It Matters
Confusing a corrosion category like C4 with an immersion category like Im2 is a common but costly mistake. The two address different exposure conditions. C-categories apply to atmospheric exposure. Im-categories apply to submerged or buried steelwork.
Using a paint system rated for C5 in an Im4 application risks early adhesion failure, corrosion creep, and major maintenance far sooner than expected. Proper classification prevents corrosion and extends asset life.
Application Examples for Each Immersion Category
Im1: Fresh water hydro installations using epoxy protective paint systems.
Im2: Jetty steel in brackish water using marine coatings suited for Im2.
Im3: Underground steel pipes and piles treated with systems for buried steel structures.
Im4: Offshore platforms submerged in high salinity with cathodic protection, requiring the most robust ISO 12944-9 qualified systems.
All examples tie into ISO 12944 C1 to CX corrosion protection systems and are aligned with the correct immersion category.
Ongoing Maintenance and Major Inspection Considerations
Protective coatings for immersion aren’t "fit and forget". The standard requires scheduled maintenance based on durability categories. High-durability coatings still need inspections for blistering, corrosion creep and breakdown at welds or edges.
Regular checks on dry film thickness, adhesion, and cathodic disbondment should be built into long-term plans to protect steel structures in offshore and marine environments.
Im4: The Most Demanding Immersion Category
Im4 is the harshest of the immersion categories. The combination of cathodic protection, high salinity and marine environments creates extreme demands on the paint system. Systems must pass ISO 12944-9 laboratory performance test methods with no compromise.
Incorrect classification here causes early system failure. That's why coating systems used in offshore and related structures must be ISO-certified specifically for Im4.
When Both Atmospheric and Immersion Categories Apply
Many structures are part-immersed: tidal zones, splash zones, and steel that spans both marine and air environments. In these cases, you must select a coating system that covers both C-category (e.g. C5, CX) and the relevant Im-category.
Ignoring either side creates weak points in the paint system. Promain helps specify complete systems that prevent corrosion in combined exposures.
Documentation, Certification, and Manufacturer Support
For every ISO 12944-9 immersion specification, insist on full documentation: test reports, durability categories, film thickness specs, and third-party validation. This proves the protective paint system is qualified for the intended environment.
Promain supplies this documentation with all qualifying coating systems, so your specification stands up under audit or inspection.
Cost, Durability Ranges and Lifecycle Value
Immersion category coatings usually cost more upfront. But selecting the right coatings prevents early failure and reduces long-term cost. A cheaper atmospheric coating used in marine environments may fail within a year, causing rework and downtime.
Promain helps clients assess full lifecycle cost based on durability categories, corrosion protection performance and asset lifespan.
Why ISO 12944-9 is Critical for Offshore and Immersion Work
ISO 12944-9 was introduced to cover offshore environments, extreme marine settings and buried steel more accurately than previous corrosion classes (e.g. C5-M). It's the benchmark for protective paint systems in these harsh environments.
Compliance with this part of ISO 12944 ensures the coating system is fit for offshore structures, related structures and submerged installations.
Key Takeaways for Immersion Categories and ISO 12944 Compliance
• Correctly identify the immersion category (Im1–Im4) based on your environment.
• Match it to the appropriate C-category for any atmospheric exposure.
• Select only coating systems that meet ISO 12944-9 test standards.
• Ensure surface preparation, film thickness and durability requirements are documented.
• Schedule inspection and maintenance to preserve the protective coating over its full service life.
Promain supports every step of this process, from product selection to documentation and application guidance.
Start Your Immersion Coating System Project with Promain
Have a project involving buried or submerged steel structures? Tell us your environment type—fresh water, brackish water, marine environments, offshore settings—and we’ll match the right coating system based on ISO 12944-9 and the applicable corrosion categories.
We interpret technical datasheets, confirm manufacturer compliance, and supply protective paint systems ready for application. Whether you're protecting steel piles, structural steel in harbours, or offshore assets, our team helps you protect steel structures from day one.
